Before we start discussing this product, I'd like to ask you a question. In your automated equipment, which small microcontroller is responsible for providing position feedback, do you really trust it? You might say, "It's okay, it works." But you know in your heart that sometimes it needs to reset to zero after power-on, sometimes the data jumps, and sometimes the precision drops when the temperature rises. These issues are minor, but they are annoying. What's more annoying is that you clearly know that absolute value encoders can solve most of these problems, but when you look at the price, you give up. This is not your problem. This is the "either-or" dilemma that the industry has faced for a long time, until now.

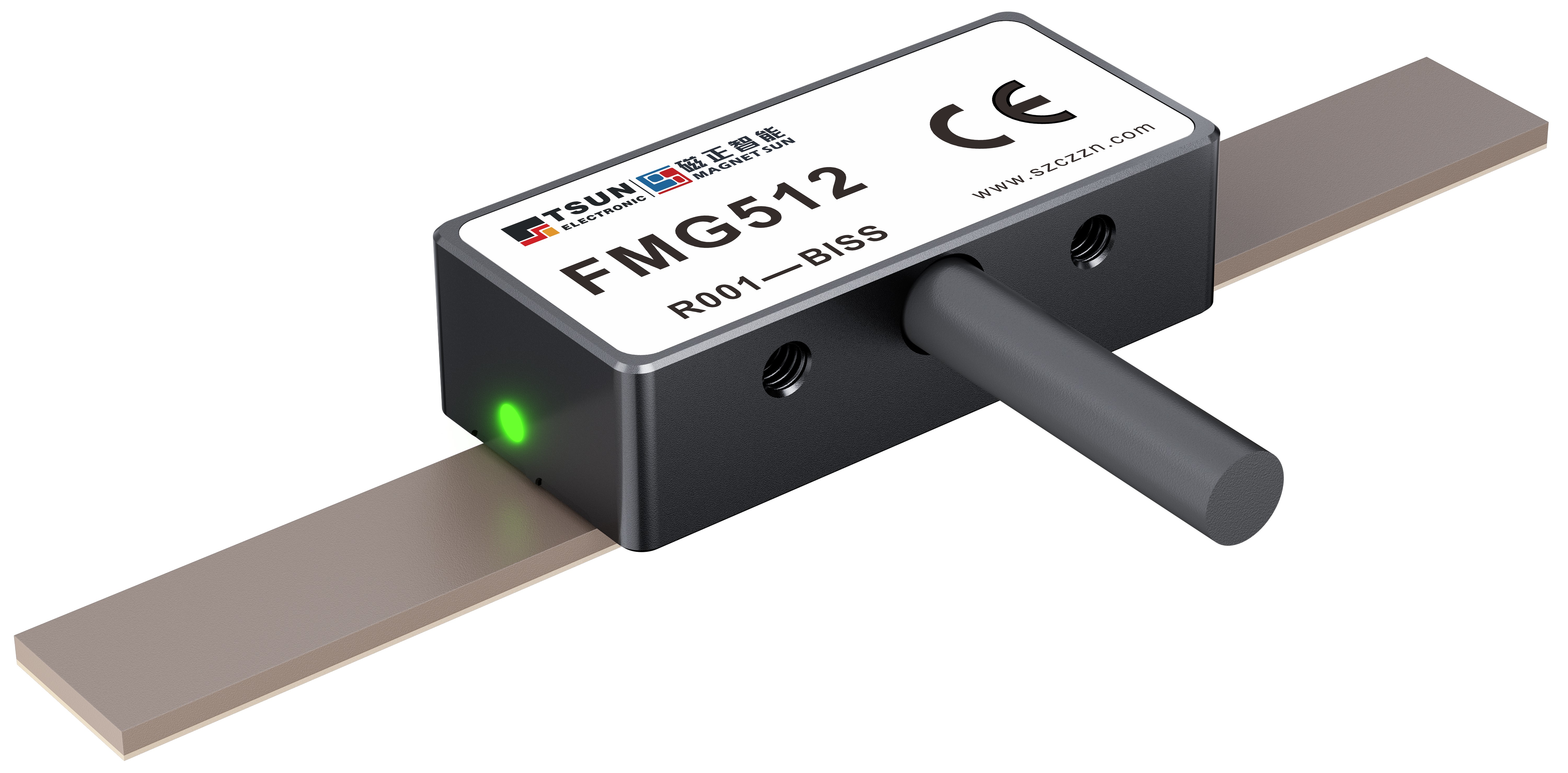

The FMG512 absolute value magnetic encoder is a product that we have been working on for a long time and finally brought to the market. It can be said that it represents a "revolutionary significance in the industry", because it accomplished something that many people wanted to do but failed to achieve:

It truly combines the high performance of an absolute value encoder with the moderate price of an incremental encoder.

You no longer need to strain your budget to enhance performance, nor do you have to compromise on functionality to save money. The existence of FMG512 allows you to achieve tangible results in the phrase "cost reduction and efficiency improvement".

It is not just about reading positions; it is about understanding the scene.

Most encoders operate in a simple way: measuring, outputting, and ending. But FMG512 is different.

It has built-in FPGA hardware acceleration algorithms, and data processing is not done through slow software running, but through parallel computing at the hardware level. It is fast, has low latency, and responds promptly. When you read it using the SSI protocol, you will find that the data comes quickly and decisively, without that sluggish waiting feeling. What truly sets it apart from other encoders is its "thinking ability". FMG512 adopts a complete set of intelligent logic including AI deep training, dynamic verification, and non-intrusive optimization. You can understand it this way: It is not just a tool that simply follows instructions, but a partner that observes, adapts, and self-regulates. If there is some oil on the magnetic scale surface, it will adjust itself. If the installation gap becomes larger due to vibration, there is no problem, as it can automatically adjust the gain bias control to keep up. If the temperature changes from a cold machine to a hot machine, the segmented temperature compensation has already calculated the errors. You are not using the encoder in an ideal laboratory; you are in a workshop, on a production line, or in a site that occasionally has issues. FMG512 fully understands this.

Power-on for 350ms, everything is ready.

What is the greatest value of the absolute value encoder? It is that it retains the position even during power loss, and it can be used immediately upon power-on. FMG512 has taken this advantage to the extreme. After power-on, within 350 milliseconds, it can output accurate absolute physical position. You don't need to make the device run back and forth to find the zero point, nor do you need to write complex zeroing logic in the program. Just power-on, and the data is correct. This 350ms not only saves time but also simplifies the logic of the device operation. Removing one process means eliminating one potential error point.

Core components are independently fabricated, not just a slogan but a guarantee.

You may have heard many manufacturers say the words "independent research and development". But FMG512's "independence" is real - all core components are independently fabricated. What does this mean? This means that the supply chain is not controlled by others, it means that you can consistently obtain the goods, and it means that we have a thorough understanding of every layer of logic of this product. In case of any issues, we can make the necessary changes all the way down to the very bottom, rather than waiting for the responses from the upstream manufacturers.

This is not an additional benefit in the current industrial environment; it is the fundamental foundation.

SSI Communication, as stable as a nail

As an absolute value magnetic encoder, the SSI interface is one of the main channels through which it communicates with your system. The performance of FMG512 on this channel can be summarized in four words: clean and efficient. It is equipped with ultra-flexible and highly sensitive dedicated cables, and the EMC electromagnetic compatibility has been carefully optimized. Even when you run it in long-distance ducts with nearby frequency converters and motors humming, it can still reliably send out differential signals, with a packet loss rate close to zero.

We have conducted multiple rounds of internal tests: 5-meter cables, 1 MHz clock frequency, continuous reading for 100,000 times, the bit error rate is zero. This is not luck, it's design.

For whom is it intended?

To be honest, the application scope of FMG512 is wider than we expected. Linear motor modules, screw drive modules, system integrators, automation equipment manufacturers - these are its traditional fields. New energy, automobiles, lasers, industrial robots, semiconductor equipment, machine tools, multi-motor variable torque motors... In these fields, it also works very well. Even those less "high-tech" industries such as stone processing, woodworking machinery, aluminum window and door manufacturing, printing equipment, FMG512 can also bring stability and cost-effectiveness at the same time.

It is not an encoder that selects industries; it is an encoder that can get things done.

Finally, I would like to say one more thing.

Tianxian Digital Intelligence and Magzheng Intelligent have been manufacturing magnetic sensors for over a decade. We don't claim to be the loudest voice in the industry, but we can say that we are among those who have made a deeper penetration. This product, FMG512, is not something we are testing out. It is something we truly believe in, truly invest in, and truly willing to use to compete with foreign brands. It is not some unattainable cutting-edge technology. It is simply an absolute value magnetic encoder with good performance, reasonable price, and ease of use. You don't need to change any habits. You just need to install it, power it on, and then rest assured that the equipment will run smoothly.

FMG512 - Make every motion control as precise as the last time!
