The LMST incremental magnetic scale encoder is a displacement sensor that measures using the magnetic interaction between the magnetic scale and magnetic resistance. It is mainly applied in various automated motion control scenarios. As an advanced position and speed control feedback unit, this encoder integrates a conversion module and digital signal output for non-contact measurement. Combined with the magnetic scale, it forms an open, sturdy, and durable magnetic measurement system.

Magnetic grid encoder

Type: Incremental

Protection grade: IP67

Output frequency: 1000KHz-8000KHz (customizable)

Resolution: 1um

Operating speed: 4m/s

Magnetic grid encoder

Type: Incremental

Protection grade: IP67

Cable length: 2M-30M (optional)

Resolution: 0.0025um-0.1um (customizable)

Operating speed: 4m/s

Magnetic grid encoder

Type: Incremental

Protection grade: IP67

Cable: 8-core shielded wire

Resolution: 1um

Operating speed: 4m/s (customizable)

Magnetic grating ruler

Type: Incremental

Protection grade: IP67

Cable length: 2M-30M(optional)

Resolution: 1um-50um is selectable

Operating speed: 2m/s

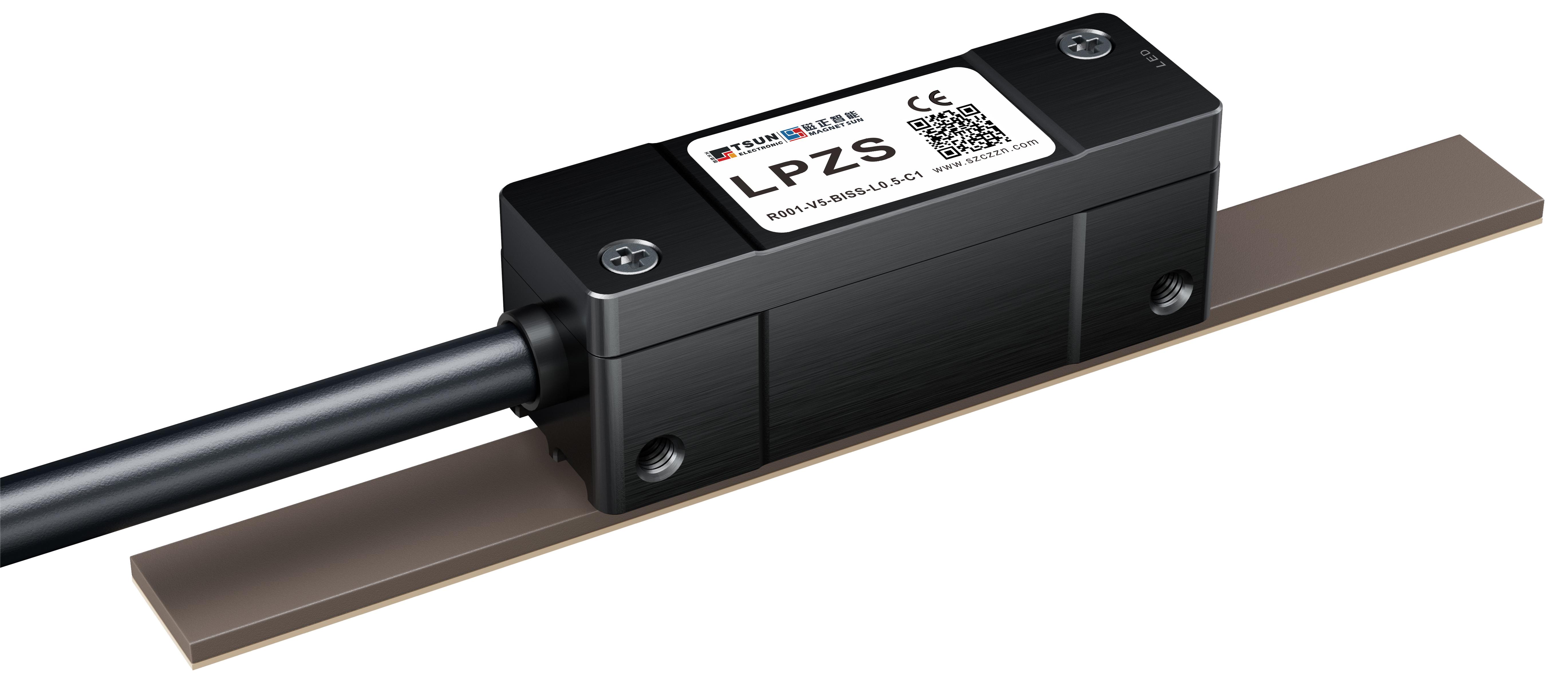

The LPZS incremental magnetic scale encoder is a displacement sensor that measures using the magnetic interaction between the magnetic scale and magnetic resistance. It is also a new type of digital sensor. Its integrated conversion module and digital signal output enable non-contact measurement. Combined with magnetic scales, it forms an open, sturdy and durable magnetic measurement system. It is widely used in various scenarios such as milling machines, grinding machines, stone cutting machines, wood cutting machines, etc.
