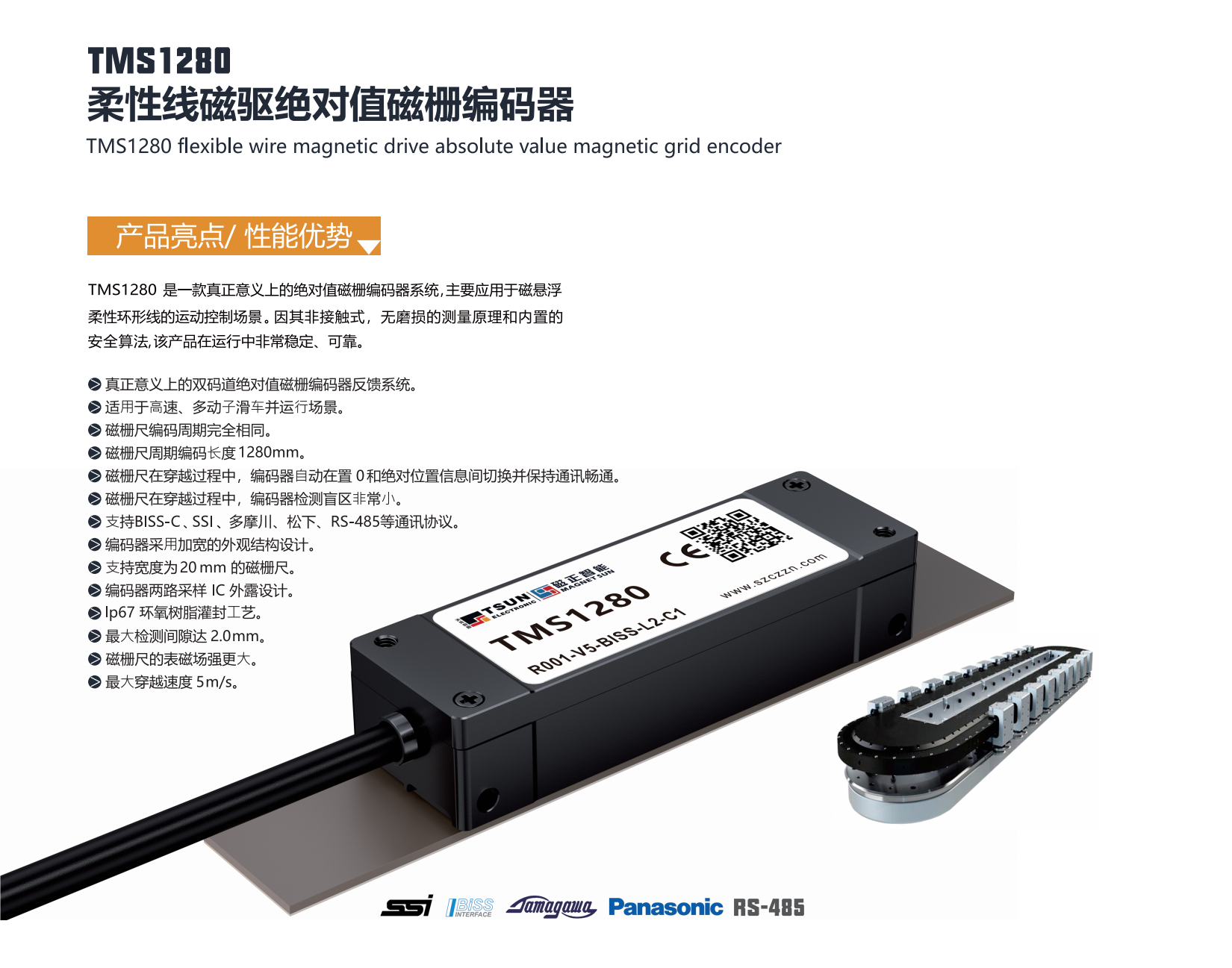

TMS1280
Absolute magnetic encoder
Product Overview
Specifications
Downloads
Inquiry
Product Description
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280去底)
TMS1280 is a truly dual-channel absolute value magnetic encoder feedback system. Suitable for high-speed, multi-jointed pulleys and operation scenarios. The encoding period of the magnetic scale is exactly the same. The periodic encoding length of the magnetic scale is 1280mm. During the passage of the magnetic scale, the encoder automatically switches between zero position setting and absolute position information and maintains smooth communication. During the passage of the magnetic scale, the encoder has a very small detection blind zone.
Features and Benefits
TMS1280 is a truly dual-channel absolute value magnetic encoder feedback system. Suitable for high-speed, multi-jointed pulleys and operation scenarios. The encoding period of the magnetic scale is exactly the same. The periodic encoding length of the magnetic scale is 1280mm. During the passage of the magnetic scale, the encoder automatically switches between zero position setting and absolute position information and maintains smooth communication. During the passage of the magnetic scale, the encoder has a very small detection blind zone.
Consult

A truly dual-channel absolute value magnetic gate encoder

The length of the periodic code is 1280mm

The magnetic stripe width is 20mm

The speed can reach 5m/s

The position feedback unit applicable to the multi-mover pulley

Robust design and strong EMC compatibility

Supports serial communication protocols such as BISS-C, SSI, Tama River, Matsushita, and RS-485

The resolution can reach 0.25μm


Downloads
绝对值磁栅TMS1280(1)
Download
Comprehensive technical support
Provide customers with full support from product customization to after-sales service
Service Support
Product Inquiry
Submit your information and we will contact you as soon as possible
TMS1280
TMS1280 is a truly dual-channel absolute value magnetic encoder feedback system. Suitable for high-speed, multi-jointed pulleys and operation scenarios. The encoding period of the magnetic scale is exactly the same. The periodic encoding length of the magnetic scale is 1280mm. During the passage of the magnetic scale, the encoder automatically switches between zero position setting and absolute position information and maintains smooth communication. During the passage of the magnetic scale, the encoder has a very small detection blind zone.
×
×
