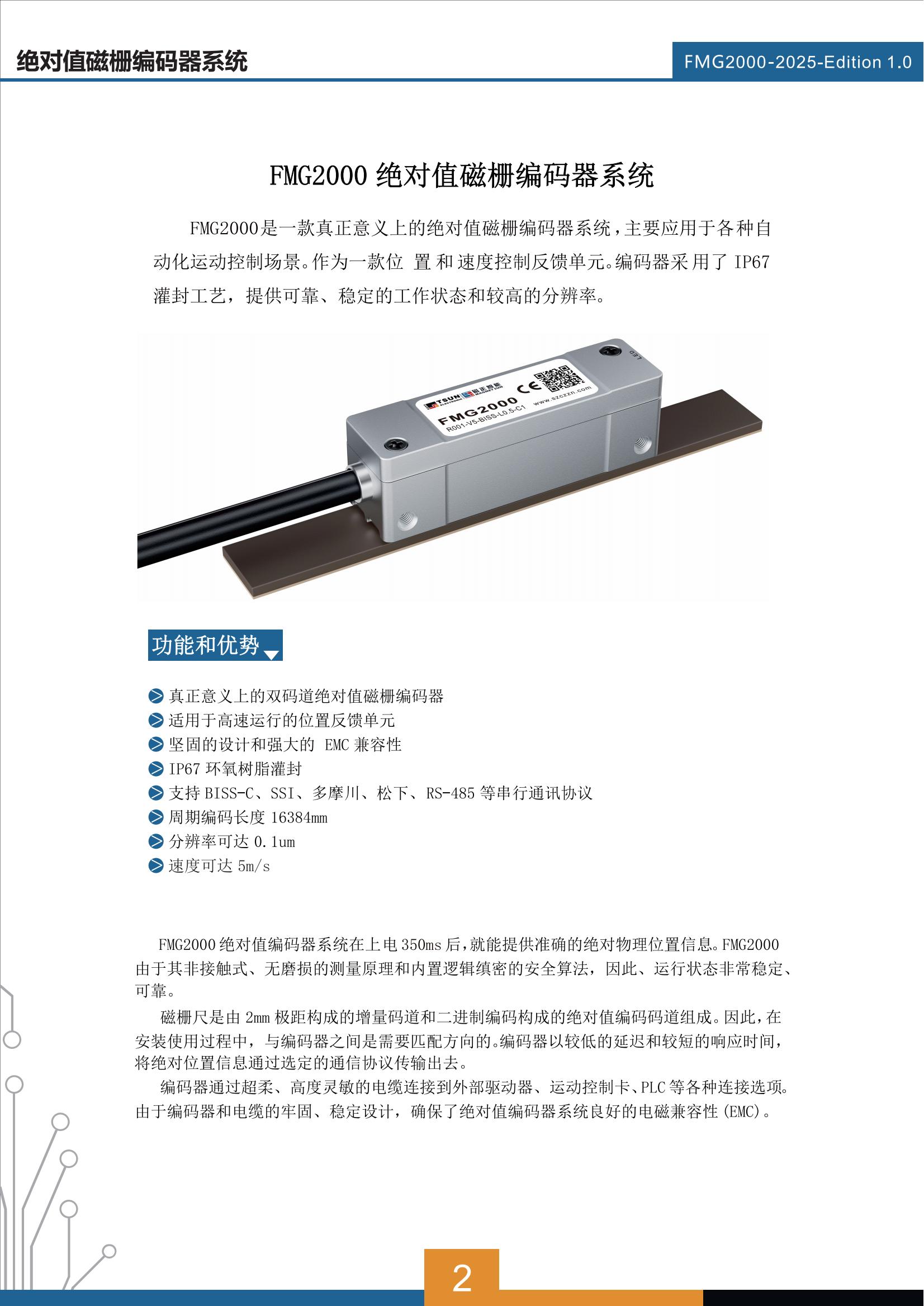

After power-on for 350ms, the FMG2000 absolute position encoder system can provide accurate absolute physical position information. The FMG2000 is characterized by its non-contact, wear-free measurement principle and built-in logically sophisticated safety algorithm, making its operating state very stable and reliable.

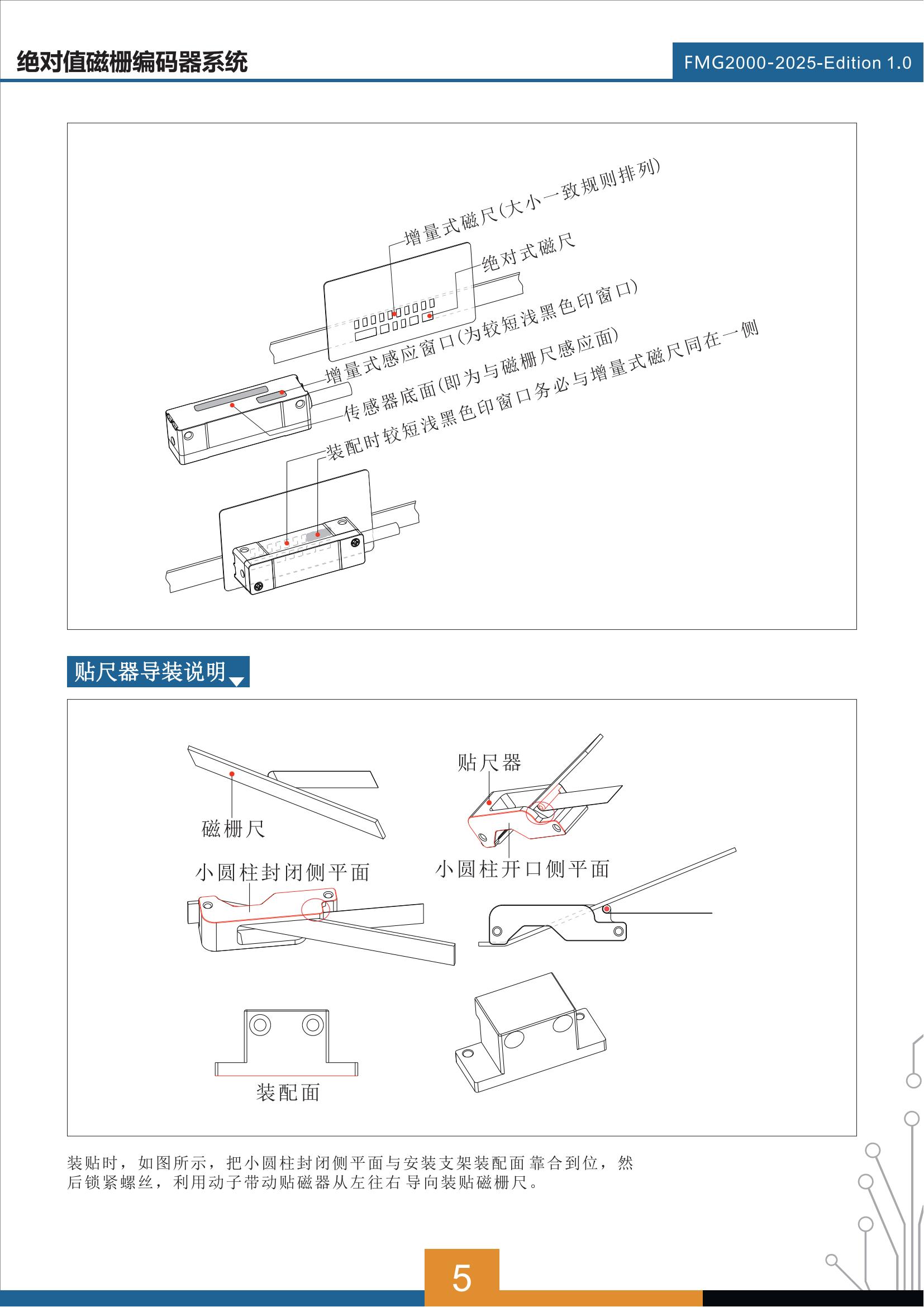

The magnetic scale ruler is composed of incremental code channels with a 2mm pitch and absolute value code channels. Therefore, during installation and use, it is necessary to match the direction with the encoder. The encoder transmits the absolute position information through the selected communication protocol with a low delay and short response time.

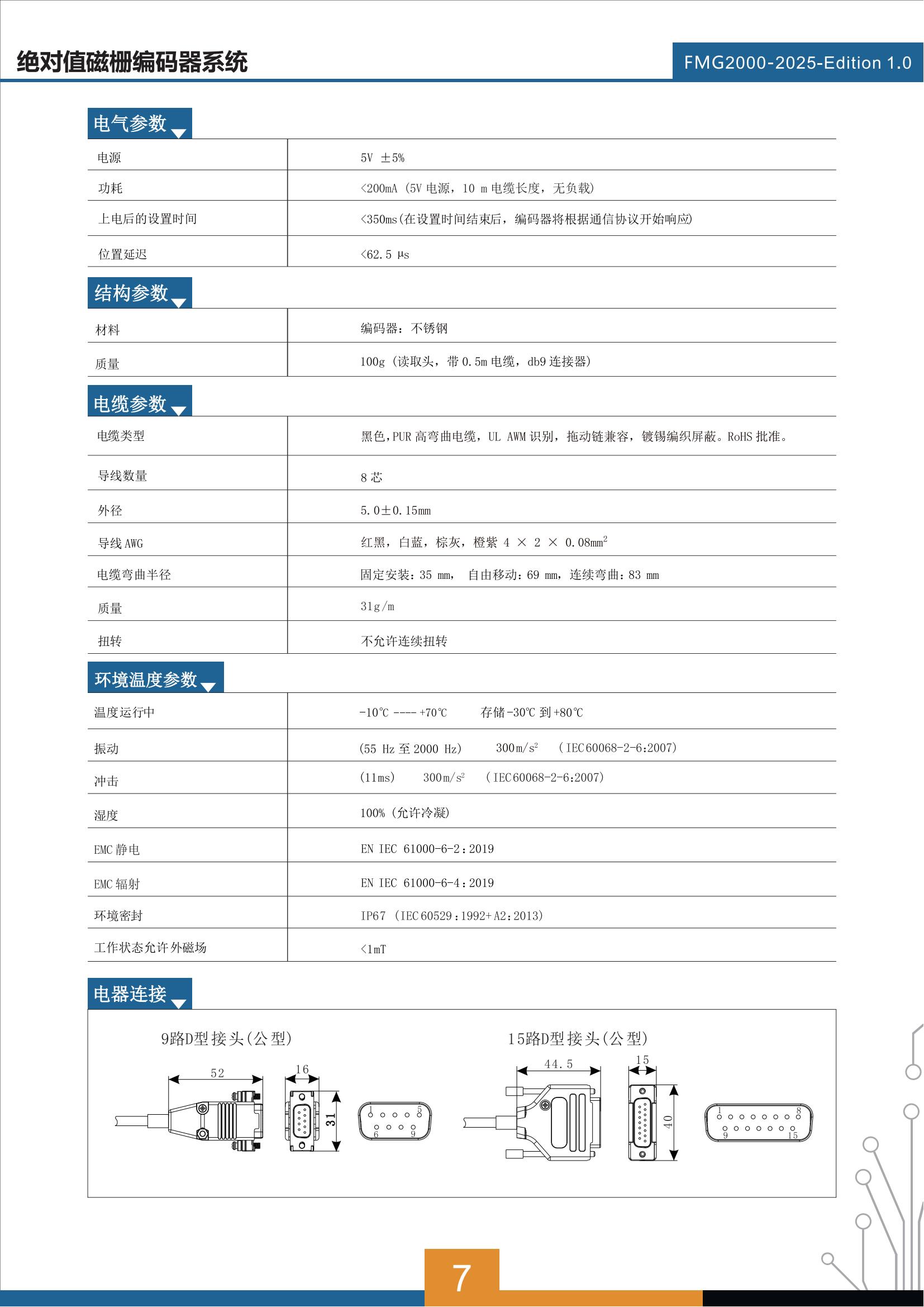

Power supply structure parameters, material, cable parameters, 5V ± 5%, encoder: stainless steel, power consumption, mass < 200mA (5V power supply, 10m cable length, no load), 100g (read head, with 0.5m cable, db9 connector). Power-on setup time < 350ms (after the setup time ends, the encoder will start responding according to the communication protocol). Position delay < 62.5 μs.

Cable type, environmental temperature parameters, temperature during operation: black, PUR high-flexible cable, UL AWM identification, drag chain compatible, tin-plated braided shielding. RoHS approved. -10℃ -- +70℃ Number of wires: storage from -30℃ to +80℃
