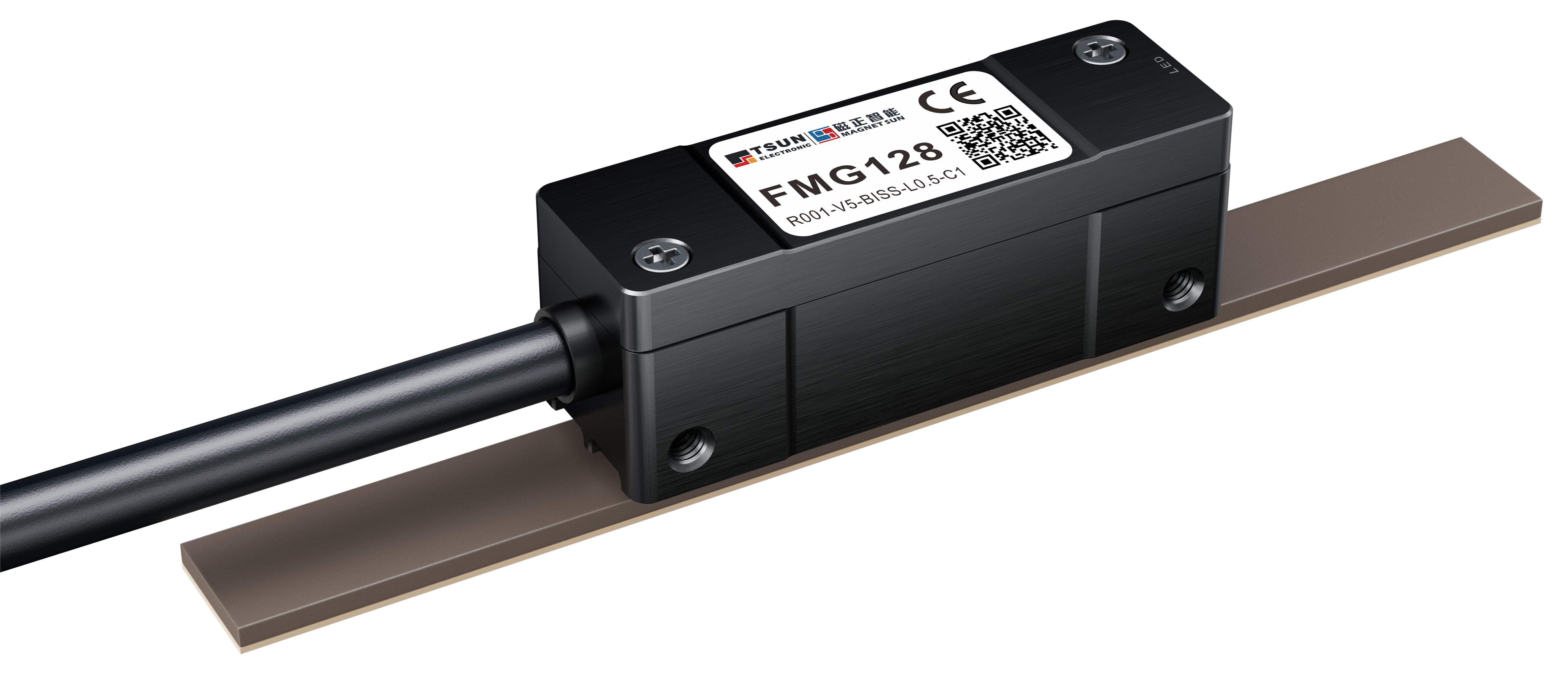

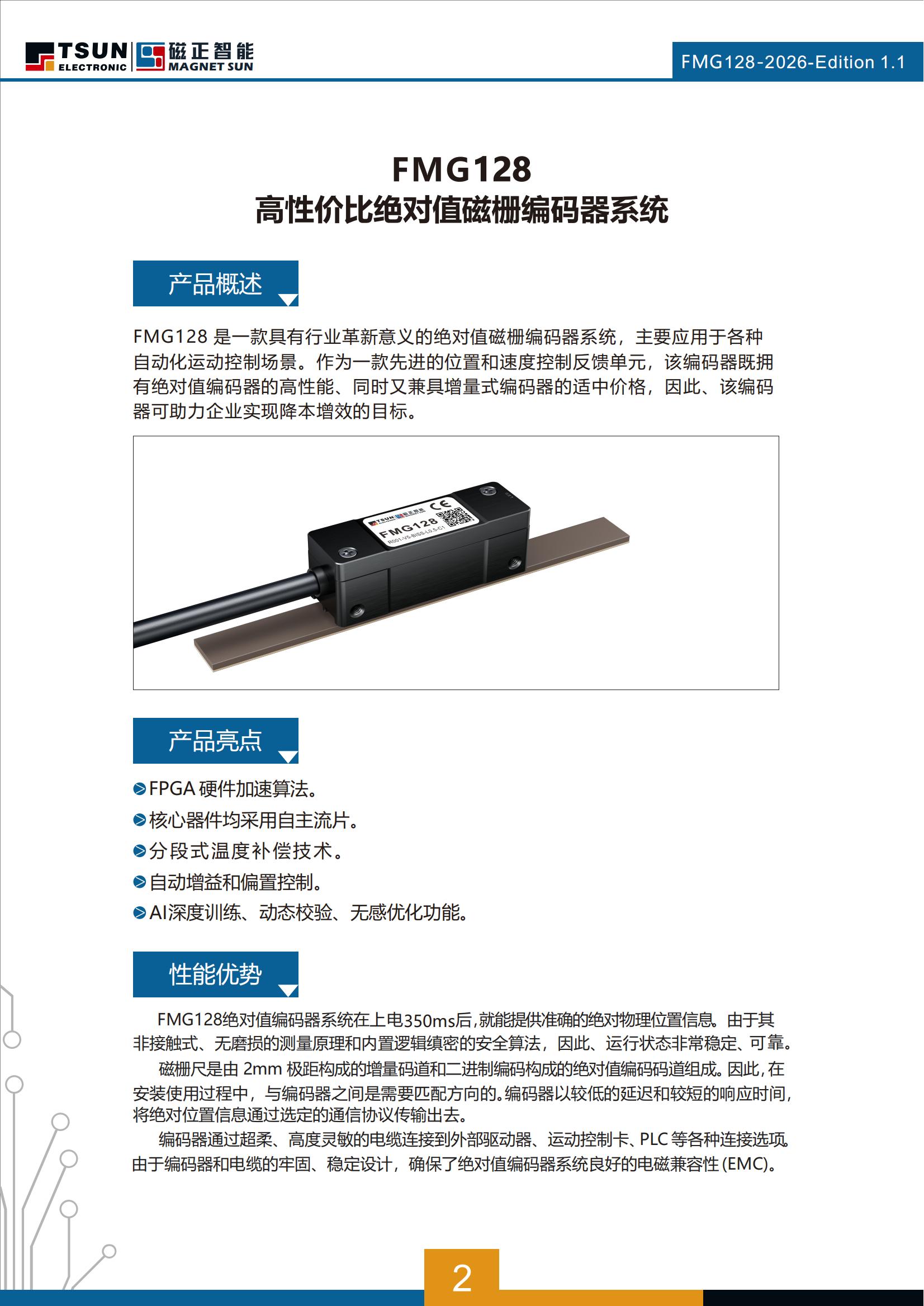

The FMG128 absolute value encoder system can provide accurate absolute physical position information 350 milliseconds after power-on. Due to its non-contact, wear-free measurement principle and built-in sophisticated security algorithm, its operating status is very stable and reliable. The encoder is connected to external drives, motion control cards, PLCs and other connection options via ultra-flexible and highly sensitive cables. Due to the robust and stable design of the encoder and the cables, the absolute value encoder system ensures excellent electromagnetic compatibility (EMC).

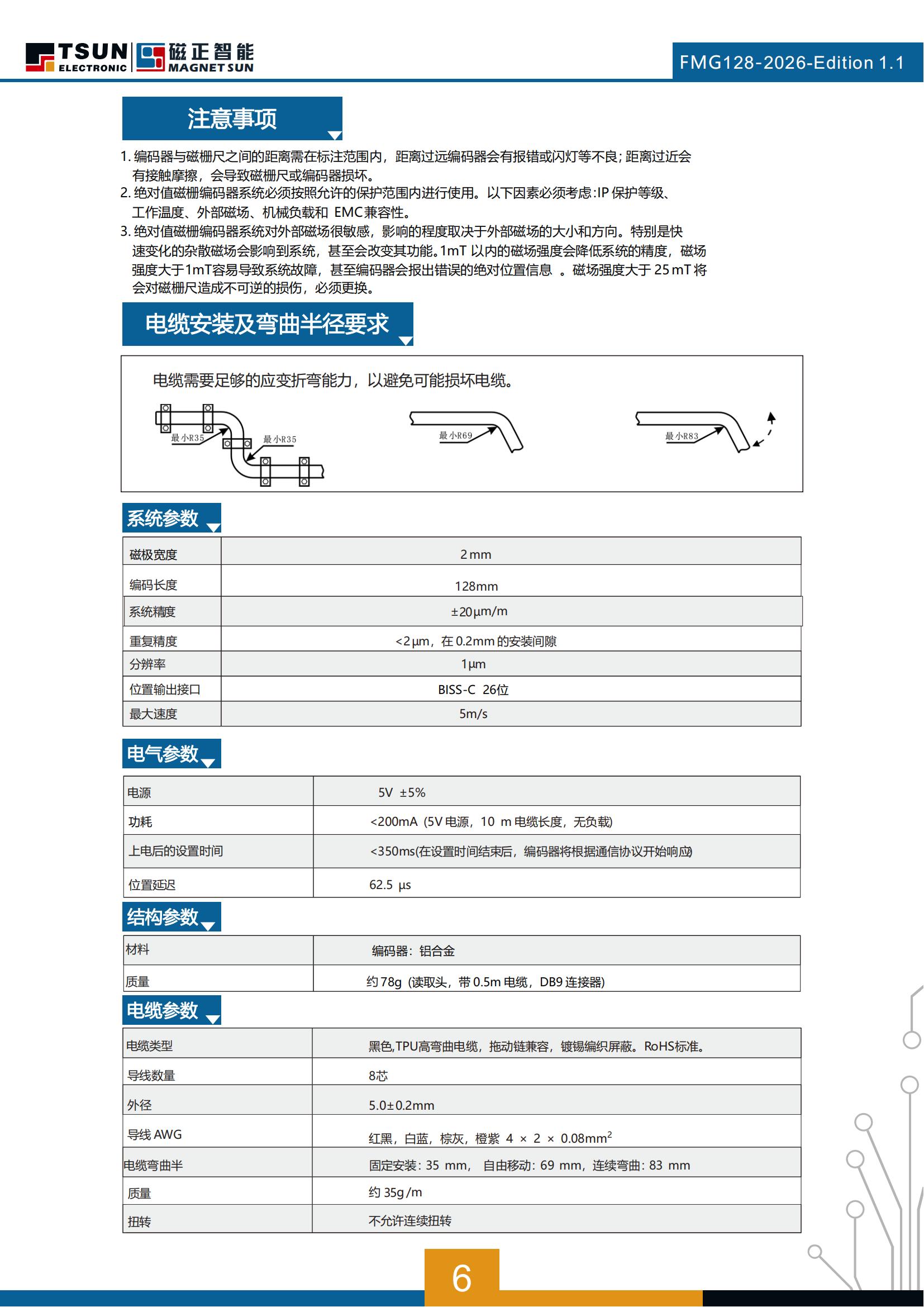

System parameters

Pole width: 2mm, Coding length: 128mm, System accuracy: ±20μm/m, Repeatability accuracy: <2μm. Resolution at 0.2mm installation gap: 1μm. Position output interface: BISS-C, 26-bit. Maximum speed: 5m/s.

Electrical parameters

Power supply: 5V ± 5%. Power consumption: <200mA (5V power supply, 10m cable length, no load). Power-on setup time: <350ms (after the setup time ends, the encoder will start responding according to the communication protocol with a position delay of 62.5 μs).

Structural parameters

Material: Encoder: Aluminum alloy. Weight: approximately 78g (read head, with 0.5m cable, DB9 connector)
