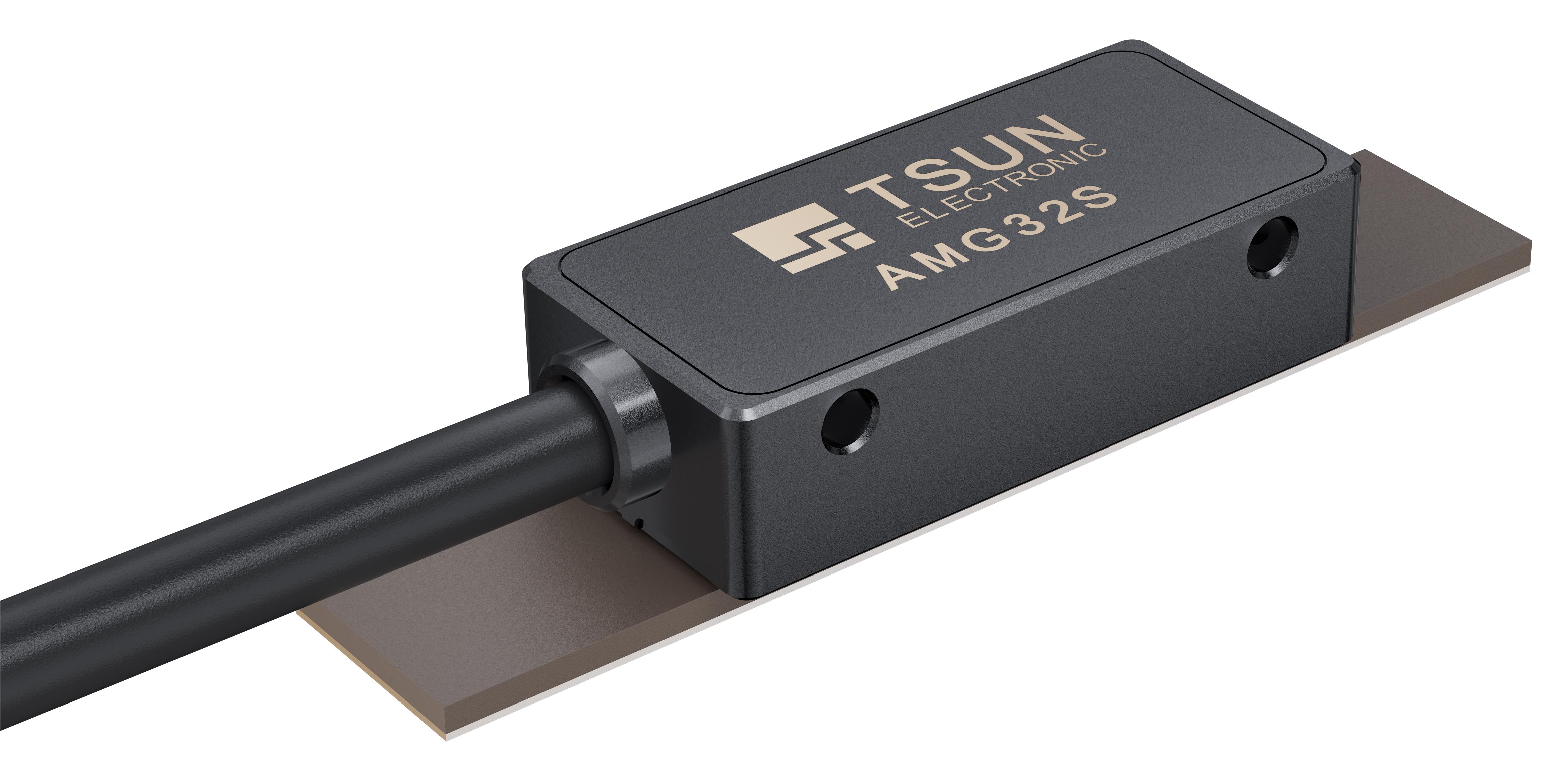

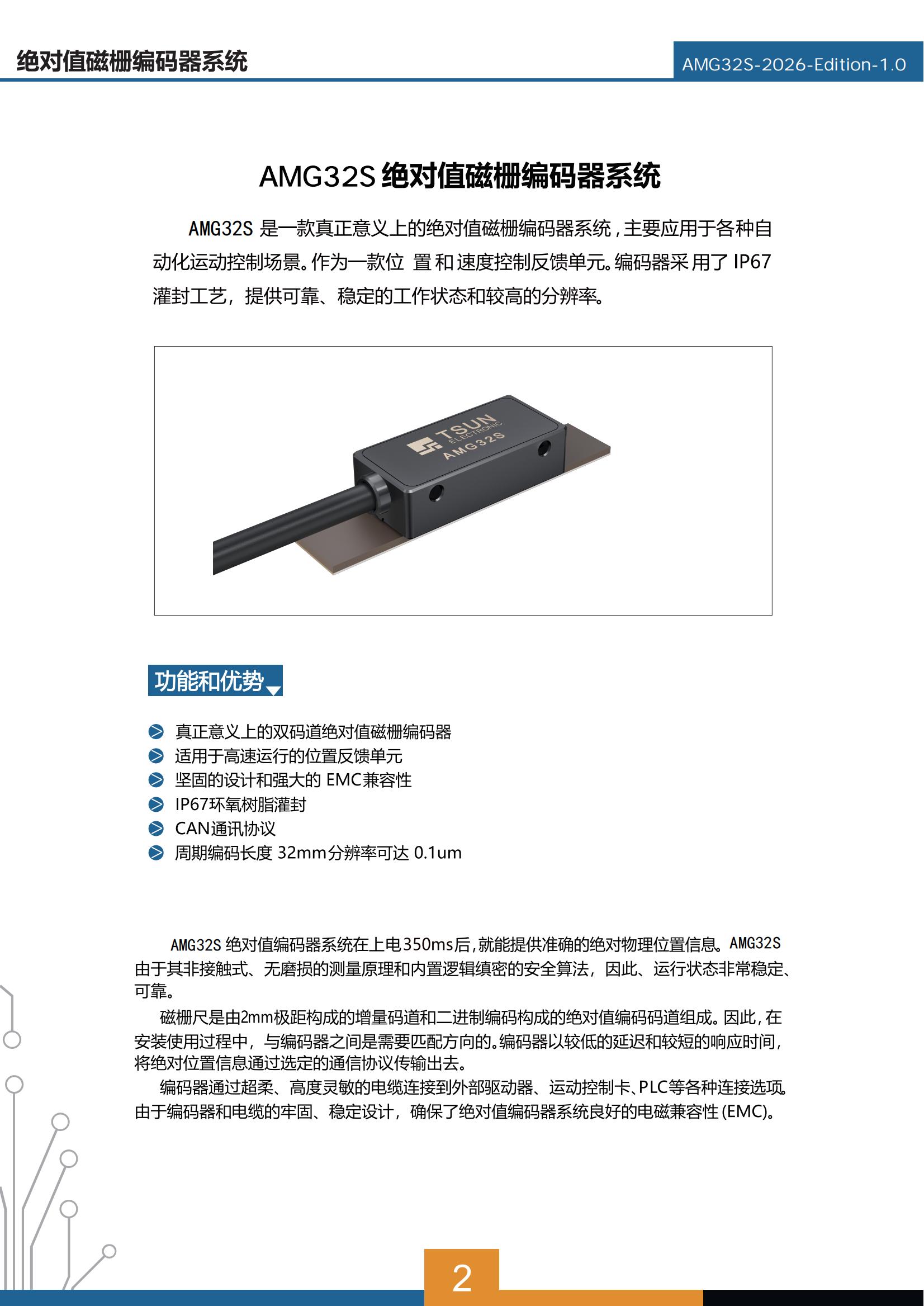

The AMG32S absolute encoder system can provide accurate absolute physical position information 350 milliseconds after power-on. Due to its non-contact, wear-free measurement principle and built-in sophisticated safety algorithm, the AMG32S operates with extremely stable and reliable performance.

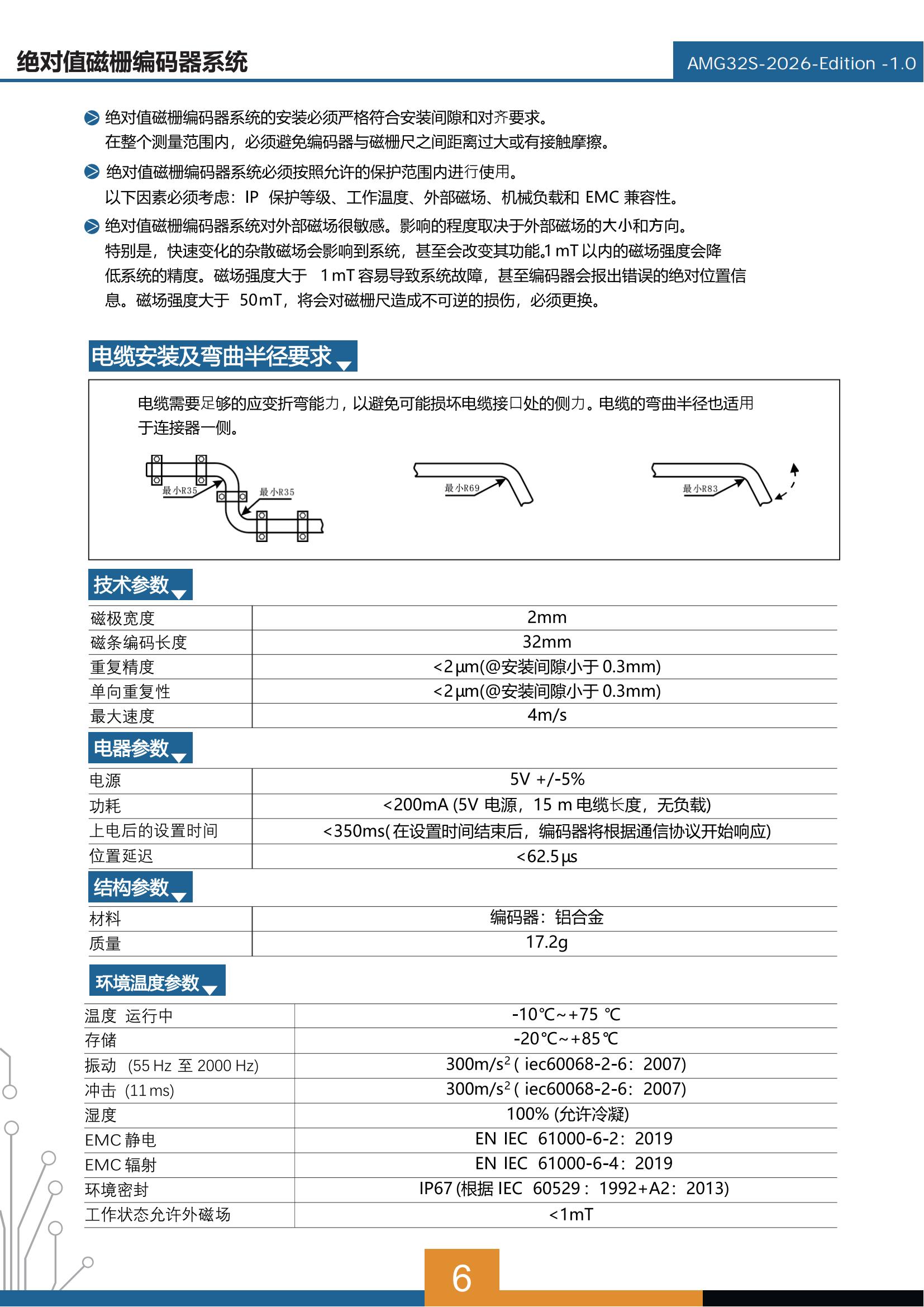

Technical Specifications

Magnetic pole width: 2mm; Magnetic stripe encoding length: 32mm; Repeatability < 2μm (@ installation gap less than 0.3mm); Unidirectional repeatability < 2μm (@ installation gap less than 0.3mm); Maximum speed: 4m/s

Electrical parameters

Power supply: 5V +/- 5%; Power consumption < 200mA (5V power supply, 15m cable length, no load); Power-on setting time < 350ms (after the setting time ends, the encoder will start responding according to the communication protocol) Position delay < 62.5μs

Structural parameters

Material of encoder: Aluminum alloy; Weight: 17.2g

Environmental temperature parameters

Temperature during operation: -10℃ ~ +75℃; Storage: -20℃ ~ +85℃
