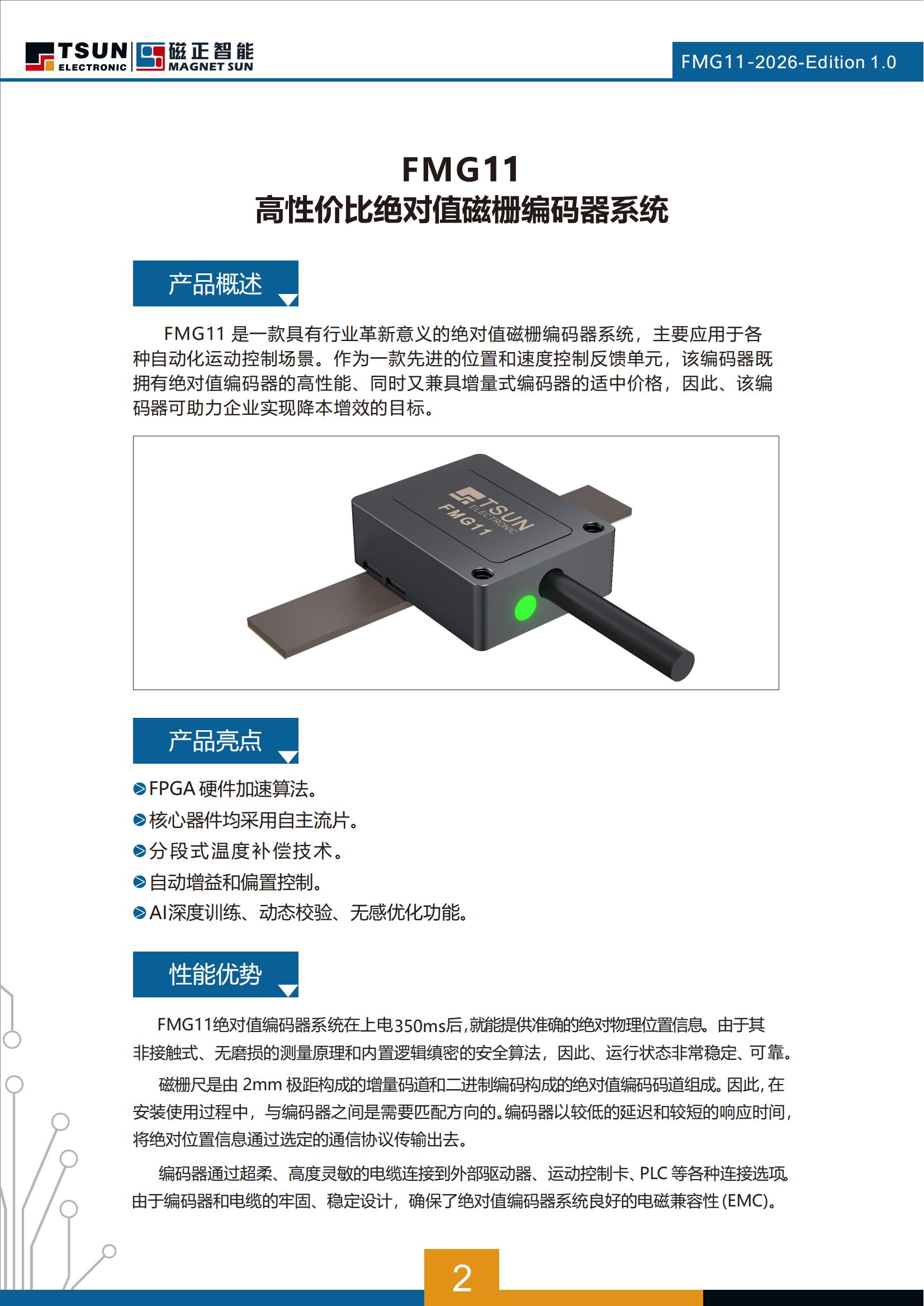

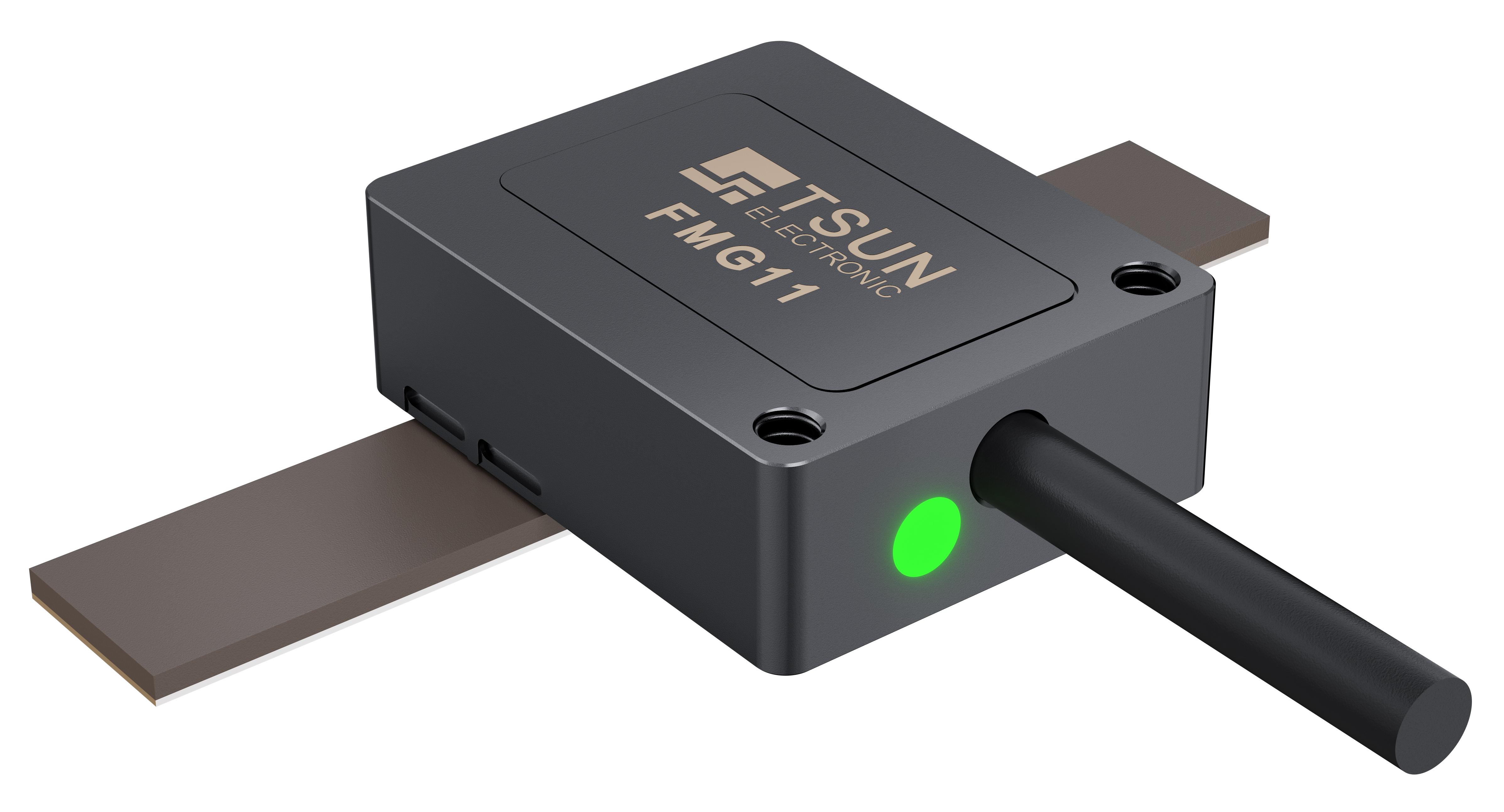

The FMG11 absolute value encoder system can provide accurate absolute physical position information 350 milliseconds after power-on. Due to its non-contact, wear-free measurement principle and built-in sophisticated security algorithm, its operating status is very stable and reliable.

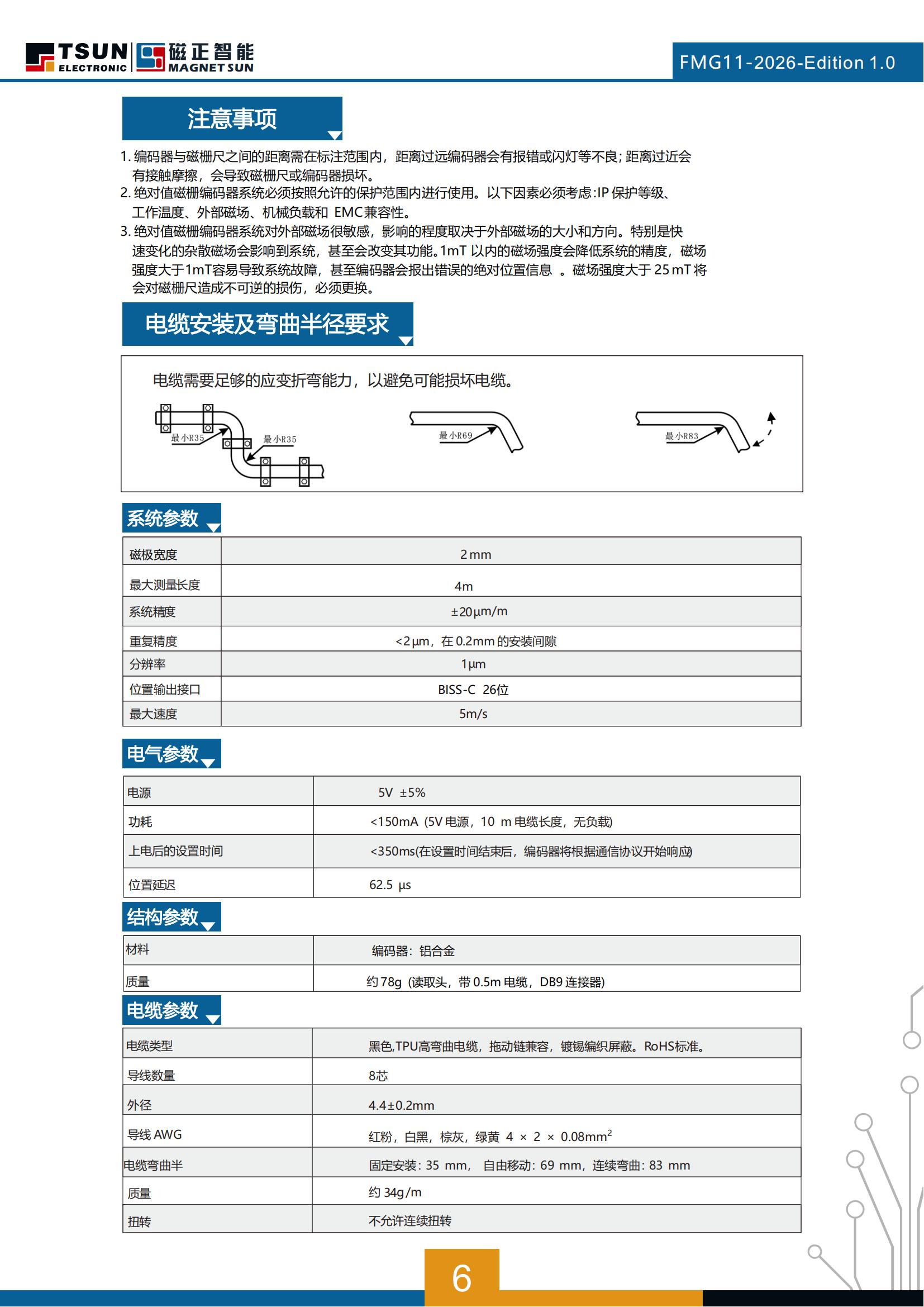

System parameters

Pole width: 2mm Maximum measurement length: 4m System accuracy: ±20μm/m Repeatability accuracy: <2μm Resolution at 0.2mm installation gap: 1μm Output interface: BISS-C 26-bit Maximum speed: 5m/s

Electrical parameters

Power supply: 5V ± 5% Power consumption: <150mA (5V power supply, 10m cable length, no load) Power-on setup time: <350ms (After the setup time ends, the encoder will start responding according to the communication protocol with a position delay of 62.5 μs

Structural parameters

Material: Encoder: Aluminum alloy Weight: approximately 78g (read head, with 0.5m cable, DB9 connector)
