Grating encoder

Type: Incremental

Repeatability accuracy: 1um

Output signal: Differential TTL

Resolution: 1um

Wiring method: Direct output /DB9/DB15

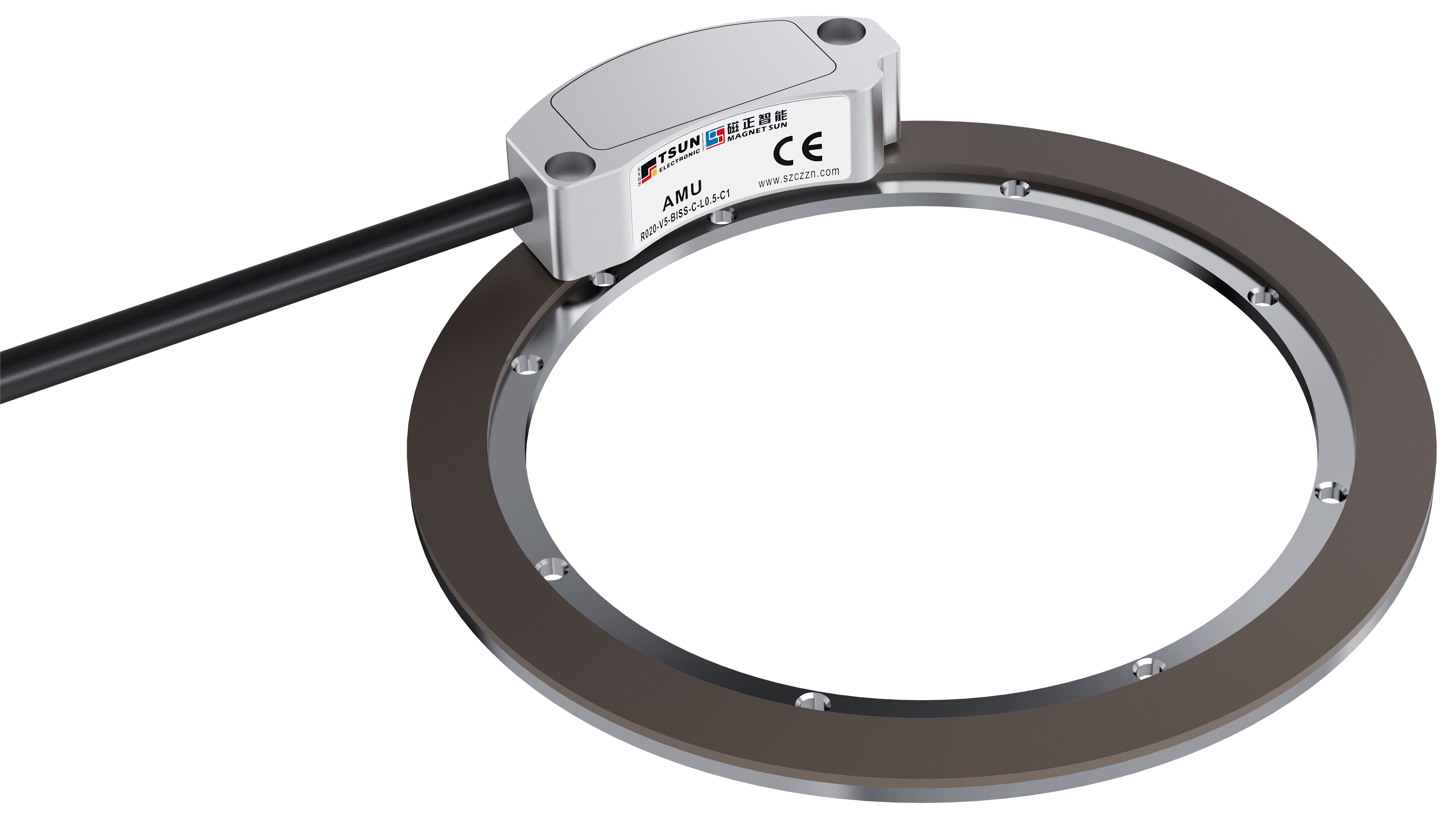

AMU is a single-circle rotating absolute magnetic encoder system. It is a non-contact high-performance off-axis encoder that consists of an axially magnetized magnetic code disk and a reading head. It can be integrated into applications with limited space. It is widely used in various fields such as automation, robotics, machine tools, medical equipment, etc.

Double-channel absolute value magnetic ring

Type: Absolute value

The outer diameter of the magnetic material: 29mm

The inner diameter of the magnetic material: 16mm

The cursor code track is extremely wide: 1.28mm

The main code track is extremely wide: 0.96mm

Double-channel absolute value magnetic ring

Type: Absolute value

The outer diameter of the magnetic material: 33mm

The inner diameter of the magnetic material: 20.4mm

The cursor code track is extremely wide: 1.18mm

The main code track is extremely wide: 1.5mm

Double-channel absolute value magnetic ring

Type: Absolute value

The outer diameter of the magnetic material: 22mm

The inner diameter of the magnetic material: 9mm

The extremely wide cursor code track: 1.3mm

The main code track is extremely wide: 2mm

Incremental magnetic ring

Type: Incremental

Magnetic pole width: 2mm

Magnetic pole accuracy: <±1

Installation clearance: 0.1-1.0mm

Material: Stainless steel + soft rubber magnetic
